Features
The heating surface of the boiler is fully fused by argon-shielded welding and X-ray inspection, and the water pressure test is qualified.

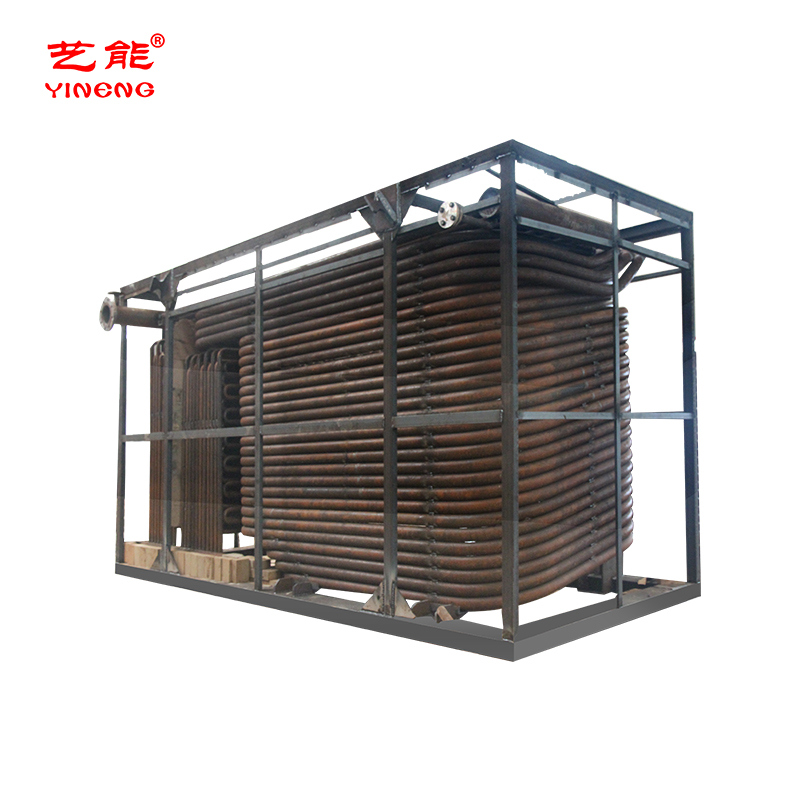

Using the unique patented technology, the top of the furnace is equipped with a top coil, and the furnace tube is heated on both sides, which prolongs the residence time of the high-temperature flue gas in the furnace and improves the life of the boiler.
The chain grate realizes automatic coal removal and slag, which is convenient for operation.
Mechanical forced combustion, design special furnace arch, full combustion.
The running speed of the grate is controlled and displayed by the knob, which can be adjusted at any time according to the actual situation to ensure full combustion.
-
-

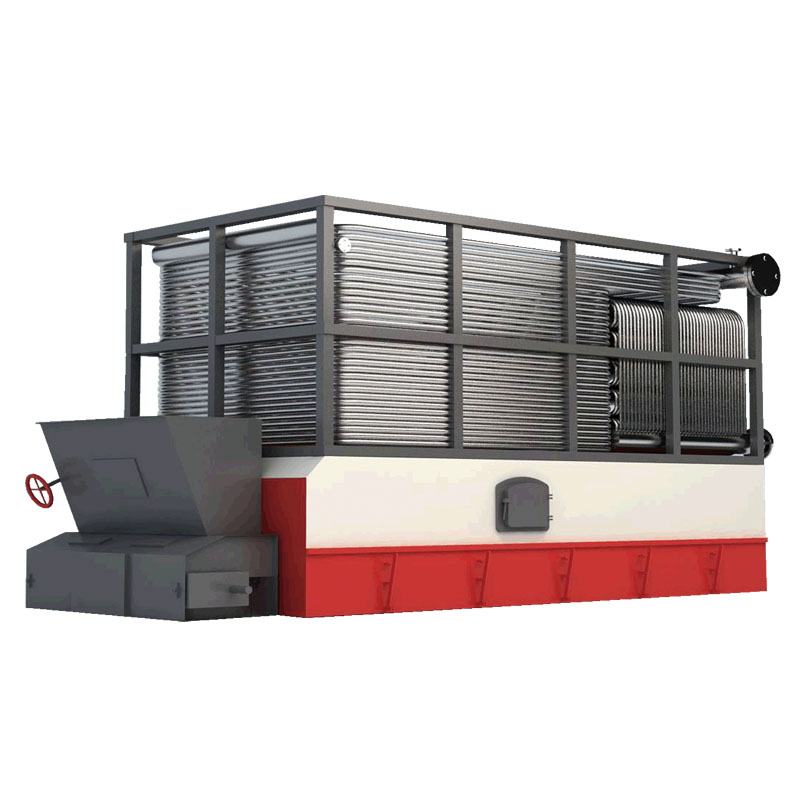

COAL OR BIOMASS FIRED THERMAL OIL BOILER
-
Technical parameter
Capacity
KW
1200
1400
2000
2400
3000
3500
4100
X10⁴Kcal/h
100
120
160
200
250
300
350
Pressure (Mpa)
1.1
Medium Max. temperature (℃)
320
Circulating oil volume (m³/h)
100
100
160
180
200
200
250
Boiler oil volume (m³)
1
1.1
1.9
2.2
2.38
3.1
3.4
Efficiency (%)
76.46
77.7
78.08
78.08
78.47
78.5
79.2
Connecting pipe diameter (DN)
150
150
150
150
200
200
200
Boiler weight (kg)
17000
18000
25000
26100
34000
38600
40000
Dimension
(mm)
L
4710
4710
5821
5821
6834
6814
6814
W
2020
1930
2040
2040
2040
2500
2500
H
3600
3808
4040
4349
4487
4487
4846
-
Capacity
KW
4700
6000
7000
8200
9300
12000
13900
X10⁴Kcal/h
400
500
600
700
800
1000
1200
Pressure (Mpa)
1.1
Medium Max. temperature (℃)
320
Circulating oil volume (m³/h)
250
300
340
400
520
600
800
Boiler oil volume (m³)
3.8
4.6
7.5
10
11.2
12
13.5
Efficiency (%)
79.5
79.5
79.1
79.5
79.7
81.1
79.1
Connecting pipe diameter (DN)
200
200
250
250
250
300
350
Boiler weight (kg)
45000
59000
70000
86500
95400
105000
113845
Dimension
(mm)
L
7214
8850
9070
10250
11300
11830
12330
W
2500
3040
3200
3200
3200
3320
3686
H
4874
5235
5287
5432
5372
6070
5991
-
YLW PRODUCTION PROCESS
