Features
The heating surface of the boiler is fully fused by argon-shielded welding and X-ray inspection, and the water pressure test is qualified.

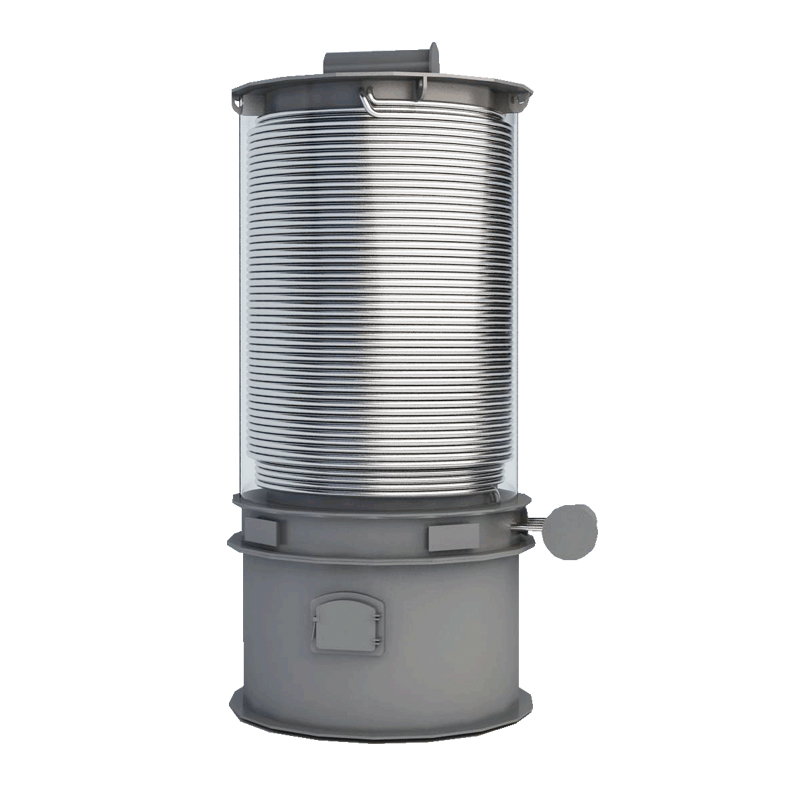

Using the unique patented technology, the top of the furnace is equipped with a top coil, and the furnace tube is heated on both sides, which prolongs the residence time of the high-temperature flue gas in the furnace and improves the life of the boiler.
Uniquely designed special furnace arch, which can burn various biomass fuels and burn well.
The boiler is easy to install, with less overall investment and high cost performance.
It can be made into a complete boiler at the factory. The assembly and fixing of the internal system piping of the boiler can be completed in the factory. After the boiler is transported to the user site, the hot equipment pipeline can be directly connected to reduce the installation time on the construction site.
-
-
Technical parameter
Capacity
kw
240
350
500
700
1000
1200
1400
2000
X104Kcal/h
20
30
40
60
80
100
120
160
Pressure
1.1Mpa
Temperature
320℃
Efficiency ≥%
74.2
74.6
74.9
77.3
77.5
78.2
77.4
79.1
Oil circulation volume (m3/h)
20
30
40
60
80
100
100
160
Oil volume in boiler (m³)
0.12
0.28
0.36
0.61
0.68
0.93
1.2
1.69
(㎡)
Heating surface
17
24
32
42
60
65
84
98
Pipe diameter DN
50
65
65
100
150
150
150
150
Installed power (KW)
10
14.5
15.2
24.2
29.7
40.7
40.7
60
Dimension (mm)
φ
1300
1700
1700
1960
2050
2160
2290
2020
H
2650
3060
3480
3805
4415
4760
5445
6090
Weight (kg)
1962
3515
3801
4636
6043
7503
8802
12690
-
